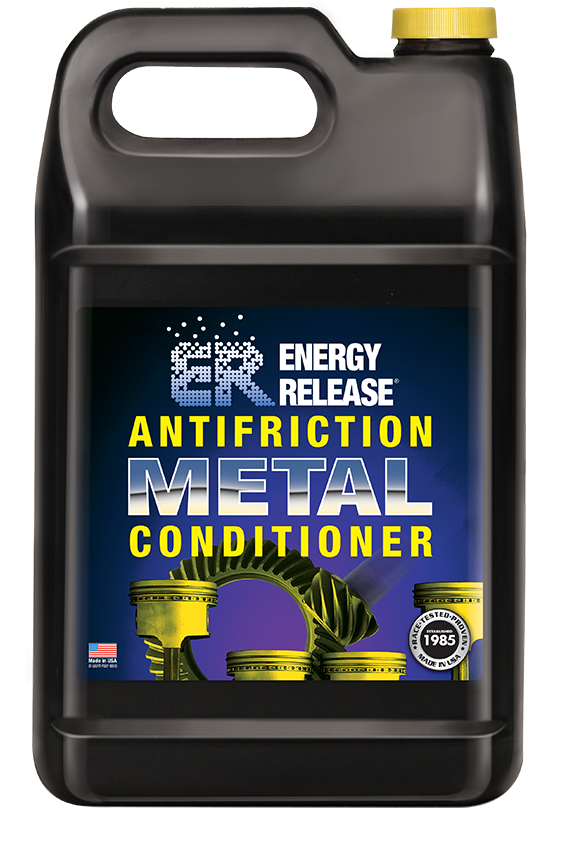

ER® Antifriction Metal Treatment conditions and protects the metal of your vehicle or machinery-not the lubricant. ER® dramatically decreases heat and friction between moving parts.

---

[tab name="PRODUCT DESCRIPTION"]

PRODUCT DESCRIPTION

ER® is a liquid chemical formula designed to be added to the lubricating fluids of your vehicle or machinery. Activated by heat and friction, ER® protects against wear created by the moving parts in your engine, transmission, differential, power steering and more. ER® is not a typical oil additive but the first “true” and “original” antifriction metal conditioner that dramatically decreases heat and friction between moving parts. ER® works to significantly smooth rough metal surfaces by modifying the first few microns of the surface. This unique chemical process results in increased performance, improved combustion efficiency, increased fuel economy, reduced operating temperatures, quieter operation, reduced oil consumption, extended oil life, easier cold starts and prolonged vehicle life.

ANTIFRICTION METAL CONDITIONER CREATES SMOOTHER METAL PARTS

Metal surfaces are quite rough (microscopically) and this produces friction, heat, and wear.	Normal oil can only withstand a certain amount and heat before it losses its ability to separate or cushion the metal parts.	Antifriction Metal Conditiner chemically affects rough metal surfaces, producing a much smoother and more resistant surface, which significally reduces friction, heat, and wear.

NEW IMPROVED FORMULA

• Antifriction properties enhanced by 40%! New formula offers improved anti-wear & extreme pressure performance.
• Compatible with all engine oil grades, including low viscosity 0w20 oils.
• Superior thermal stability. Resists thickening at low temperatures and prevents breakdown and shearing which degrades lubricity.
• Advanced anticorrosive and anti-oxidation properties to prevent sludge buildup.
• Energy Release® advanced formula is slightly more transparent in appearance and less viscous.

ER® creates smoother metal parts:

ER added to oil	High grade oil only

“TESTIMONY FROM THE PROS”

“I use Energy Release® in all my vehicles. My personal ones, my racing ones, and my toys. Energy Release® help us to finish races and run up front.”
— Sammy Swindell
3-Time World of Outlaws National Champion

[tab name="PRODUCT APPLICATION"]

PRODUCT APPLICATION

ER® — 100% PURE CONCENTRATE

• One 6 fl. oz. (473 ml) bottle of ER® treats your entire* vehicle:
• Engine, transmission, power steering and differential for about the same price as single “engine-only” treatments!

DIRECTIONS:

Engine/Crankcase

• Crankcase: (16:1) 2 fl. oz./quart (60 ml per 946 ml) of oil initially.
• Subsequent applications – 1 fl. oz./quart (30 ml per 946 ml)
• *Based upon 5 quarts (4.73 L) crankcase.

Fuel

• 2-stroke: (64:1) .5 fl. oz./quart (15 ml per 946 ml) of 2-cycle oil (mix thoroughly) before mixing with gasoline.
• 4-stroke: (16:1) 2 fl. oz./quart (60 ml per 946 ml)

Power Steering/Hydraulics

• (32:1) 1 fl. oz./quart (30 ml per 946 ml)

Differentials/Transfer Cases

• Up to 80wt. oil: (16:1) 2 fl. oz./quart (60 ml per 946 ml)
• Over 80wt. oil: (8:1) 4 fl. oz./quart (118 ml per 946 ml)

Transmissions

• (Do Not Use with Limited Slip Applications)
• Automatic: (64:1) .5 fl. oz./quart (15 ml per 946 ml)
• Manual: (16:1) 2 fl. oz./quart (60 ml per 946 ml)

Bearings

• Oil Bath: (16:1) 2 fl. oz./quart (60 ml per 946 ml)
• Grease: Add 8% ER® to existing grease

Cutting/Tapping

• Apply directly to tool

[tab name="PALLET INFORMATION"]

PALLET INFORMATION

For pallet size or International orders, please call 1-800-234-6437

Pallet packing information is provided below

Item#	DESCRIPTION	SIZE	UPC 7 86860+	UNITS IN CASE	QTY PER PALLET	CASES PER PALLET
P001	ENERGY RELEASE® ANTIFRICTION METAL CONDITIONER	5 fl. oz. / 148 ml	12001 9	12	3840	320
P002	ENERGY RELEASE® ANTIFRICTION METAL CONDITIONER	16 fl. oz./473 ml	80002 7	8	1152	144
P003	ENERGY RELEASE® ANTIFRICTION METAL CONDITIONER	128 fl. oz./3.78 L	01003 7	4	208	52
P007	ENERGY RELEASE® ANTIFRICTION METAL CONDITIONER	8 fl. oz./237 ml	12007 1	12	2400	200

[tab name="TEST DATA"]

DYNAMOMETER: Tested numerous times at independent laboratories on auto, diesel, truck, tractor and racing engines.

RESULTS: In all these tests with ER®, heat decreased; horsepower and torque increased through a wide power range. ER® lowered the coefficient of friction of regular 10w30 motor oil from .082 to .020, remaining stable and functional at operating temperatures far beyond ordinary lubricants.

---

MACHINING AND ENERGY RELEASE®

Hand Operations (drilling/tapping, etc.)	Mix 12% ER® to cutting oil (8:1)
Automatic Systems using oil-based cutting fluids	1 fl. oz./qt. (32:1)
Difficult Operations using oil-based cutting fluids	2 fl. oz./qt. (16:1)

ER® Cutting and Tapping Spray is excellent for hand operations and difficult machining operations.

---

SPECIFICATIONS

COEFFICIENT OF FRICTION

• Regular motor oil (10w30) 0.082
• Motor oil treated with Energy Release® 0.020

Energy Release® remains stable and functional at operating temperatures far beyond that of ordinary lubricants.

---

INDEPENDENT LABORATORY TESTING

TEST 1- Stationary Four Ball

• High grade oil only average scar diameter 0.808 mm
• High grade oil with ER® average scar diameter 0.686 mm

ER® produced significant wear reductions of over 15%.

TEST 2 – Falex Test

Pounds Pressure	Ratchets*	Torque	Ratchets	Torque
100		1	With Energy Release®
500	111	9	125	8
750	75	15	65	13
1000	65	19	67	15
1250	74	19	76	18
1500	73	22	69	19
4000	1000	51	885	41
4000	1398	51	1287	41

^* Pressure created by ratchet movement.

11.5% less ratchets to reach 4000 pounds pressure with ER®.
20% less torque at 4000 pounds of pressure with ER®.

Visible wear on test pins showed approximately 200% less wear with ER® added to high grade oil.

OTHER TESTS

• ASTM 5183 – Coefficient of Friction
• ASTM D-130 – Pass
• ASTM D-2783 – Stationary Four Ball
• ASTM D-2782 – Timken OK Load

Mercon – Elastomer Test (all materials)
Caterpillar Seal Test – O-ring and spring pressure seals
EPA - 600/4-79-020 – Conductivity

ASTM D-86	ASTM E659	ASTM D-1500
ASTM D-1160	ASTM D-70	ASTM D-445
ASTM D-97	ASTM D-92	ASTM D-92 C.O.C.
ASTM D-2602	ASTM D-2270	ASTM D-287
ASTM D-524	ASTM D-874	ASTM 1091
ASTM D-3829	FTM 3470	FTM 203
